[product model]
DC1(2) - 8Z Peristaltic Pump filling machine
[ Product introduction ]

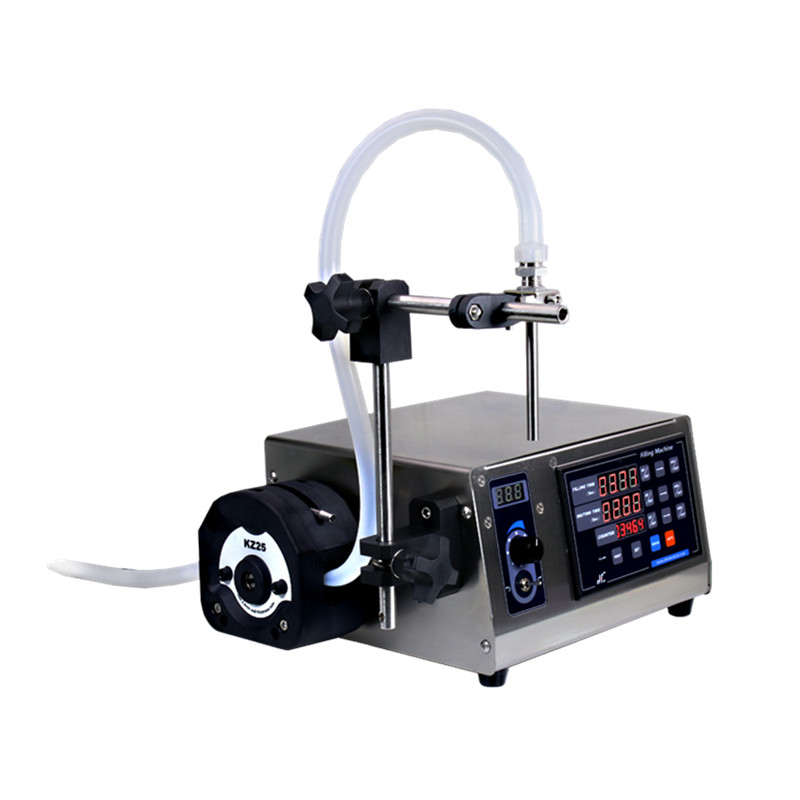

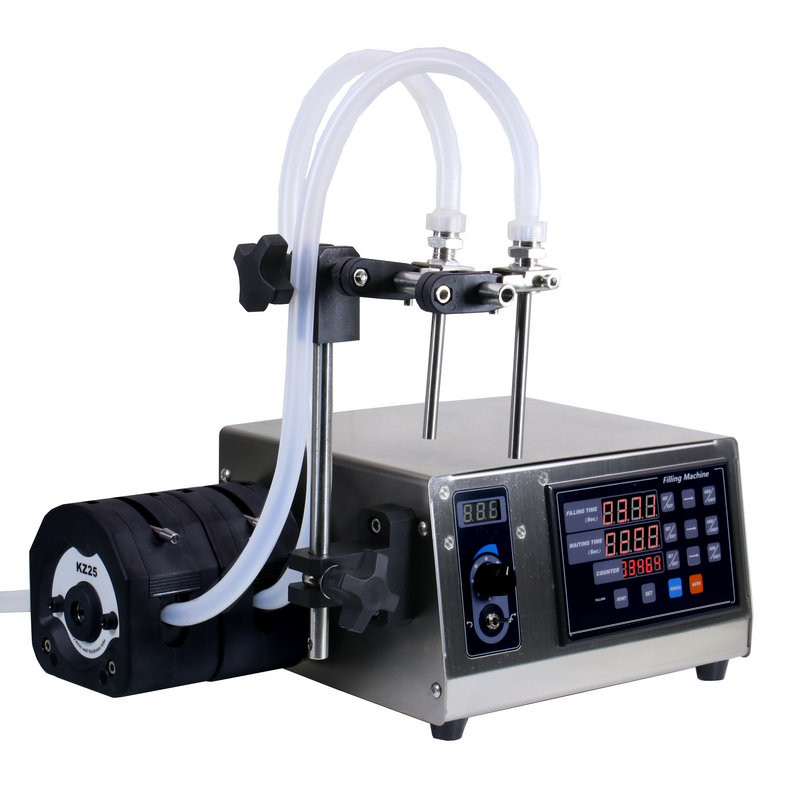

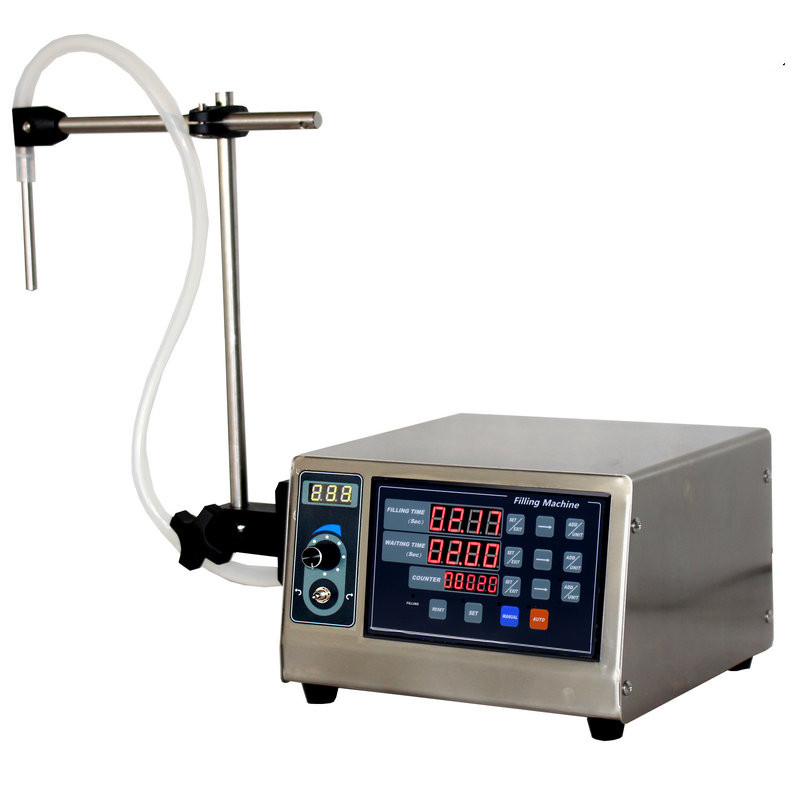

DC1-8Z single channel filling machine, DC2-8Z double channel filling machine
Flow range: 0-6000mL/min per channel.
Filling range: 1-99000mL
The best filling volume: 30-3000mL
AdIPL-OPT-machine.html target='_blank'>OPT LANDTO-LED-DISPENSER-1 intelligent operation technology,imported chip STM32
control，With timing quantitative filling, high precision, Flow accuracy±1%
The DC1-8Z driven by a brushless dc motor,
DC brushless motor life long, no carbon brush, no maintenance, life than ordinary DC motor 10 times or more.
DC brushless motor has high operating precision, hall sensor detection position, speed is not affected by load and ambient temperature, filling precision is high
liquid only pass the tube, doesn’t touch pump body, avoid secondary pollution
To Fill beverage, wine, petroleum, chemical, oil, pharmaceutical, pesticide and other viscosity or
impurity liquid.
To fill medical reagent， normal liquid, viscous liquid, impurity liquid
Import potentiometer knob to adjust the flow
Manual, auto, preset filling three modes for choice
Filling time preset, interval time preset, filling times accumulate and preset
Foot switch control
304 stainless steel filling nozzle
Excellent industrial design, 304 stainless steel shell
Power supply: AC 90-260V；50Hz/60Hz
[ Technical parameter ]
|
Model |
DC1-8Z Peristaltic Pump filling machine |
DC2-8Z Peristaltic Pump filling machine |
|
Filling nozzle |
Single |
Double |
|
Filling pump head |
KZ25 |
|
|
Peristaltic pump tube |
Standard 36# food grade tube |
|
|
CPU |
ARM Cortex-0 Core,STM32 Chip |
|
|
Filling range |
1-99000mL |
|
|
The best filling volume |
30-3000mL |
|
|
Flow range |
0-6000ml/min |
|
|
Flow adjust |
Import potentiometer knob to adjust the flow |
|
|
Filling mode |
Manual, auto, preset filling three modes for choice |
|
|

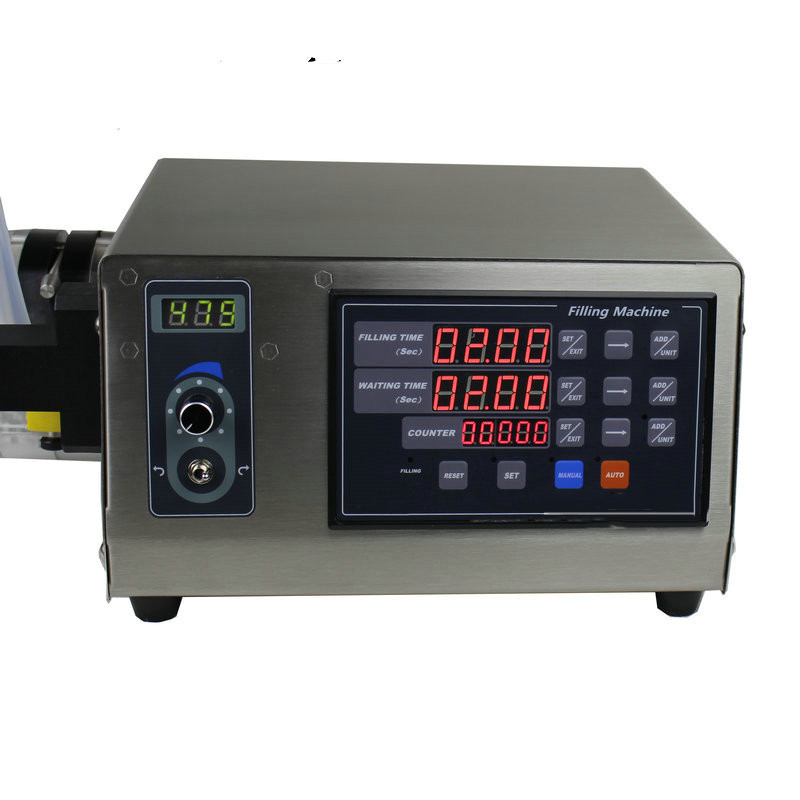

Display function |
4 digit LED display the filling time, 4 digit LED display pause time,5 digit LED display filling times |
|
|
Filling time preset |
0.01s-999.9s |
|
|
Interval time preset |
0.01s-999.9s |
|
|
Filling time |
59999 times at maximum |
|
|
Filling time preset |
Accumulate filling times, preset the filling time for choice |
|
|
Operation mode |
Membrane keypad and rotary encoded switch, more easy, prompt and reliable, Import potentiometer knob to adjust the flow |
|
|
Power-down memory function |
After power on, running as before |
|
|
Foot switch control |
Foot switch control for start/stop |
|
|
Filling stand |
Both of the height and length of the stand are adjustable |
|
|
Filling nozzle |
304 stainless steel, nozzle inner diameter 6mm |
|
|
Power consumption |
<150W |
|
|
Power supply |
Wide voltage AC90-260V，50Hz/60Hz |
|
|
Operation condition |
Temperature 0 to 40 °C, Relative humidity < 80% |
|
|
Dimensions |
390mm×270mm×205mm（doesn’t including the filling support) |
|
|
Weight |
10KG |
|
|
IP rating |
IP31 |
|
[ Dimensions]
