[product model]
DC1-6B Peristaltic Pump filling machine
[ Product introduction ]
Flow range: 0-500ml/min
Filling range: 0.1-8000mL
The best filling volume: 0.1-250mL (prolong time to add volume)
AdIPL-OPT-machine.html target='_blank'>OPT Landto-LED-DISPENSER-1 intelligent operation technology,imported chip STM32
control，With timing quantitative filling,high precision, Flow accuracy±1%
Peristaltic pump filling, 42 stepper motor drive, 128 Times segmentation, low vibration, high
precision; the liquid only through the tube, don't touch pump body, to avoid secondary pollution.
The tube is the import long-life Pharmed soft tube, anti-corrosion
To Fill beverage, wine, petroleum, chemical, oil, pharmaceutical, pesticide and other viscosity or impurity liquid.
To fill nutrient medium, medical reagent
Imported potentiometer knob to adjust the flow
Support running time preset, interval time preset, filling time memory and preset
Manual, auto, preset 3 filling modes for choice

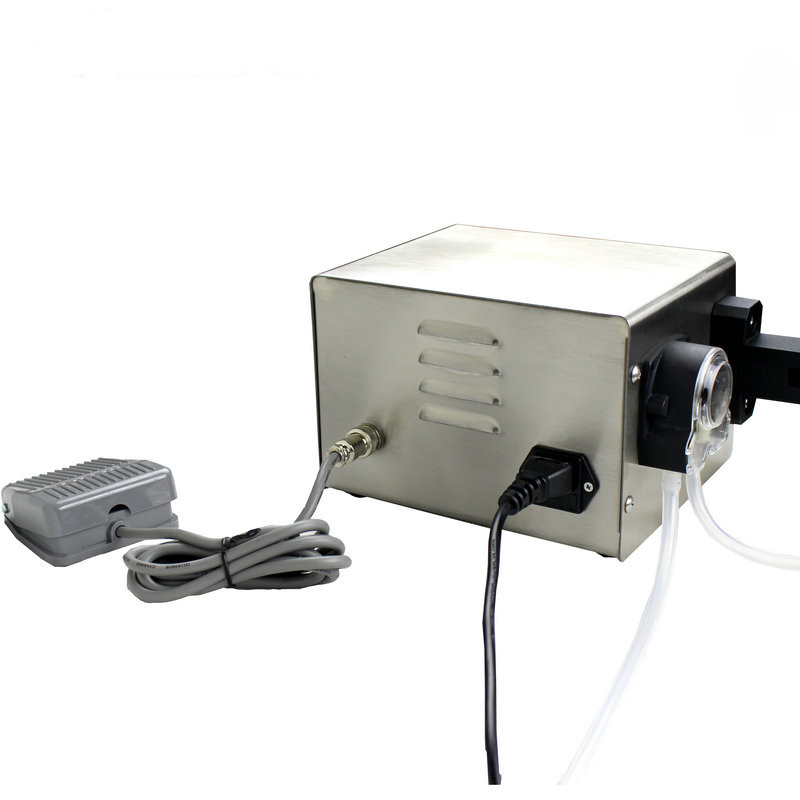

Foot switch control
304 stainless steel nozzle
Excellent industrial design, 304 stainless steel shell
Widely power range, AC 90-260V, 50Hz/60Hz
[ Technical parameters ]
|
Model |
DC1-6BPeristaltic Pump filling machine |
|
Filling pump |
S300-JZ15 peristaltic pump |
|
CPU |
ARM Cortex-0 Core, STM32 Chip |
|
Motor drive chip |
THB6128 SANYO driver chip |
|
Filling tube |
Import 17# long-life peristaltic pump tube (with the import food grade silicone connection tube ) |
|
Filling range |
0.1-8000mL， |
|
The best filling volume |
0.1-250mL |
|
Flow range |
0-500mL/min |
|
Flow adjust |
potentiometer knob to adjust the flow |
|
Filling nozzle |
Single |
|
Filling mode |
Manual,auto, preset three filing modes for choice |
|

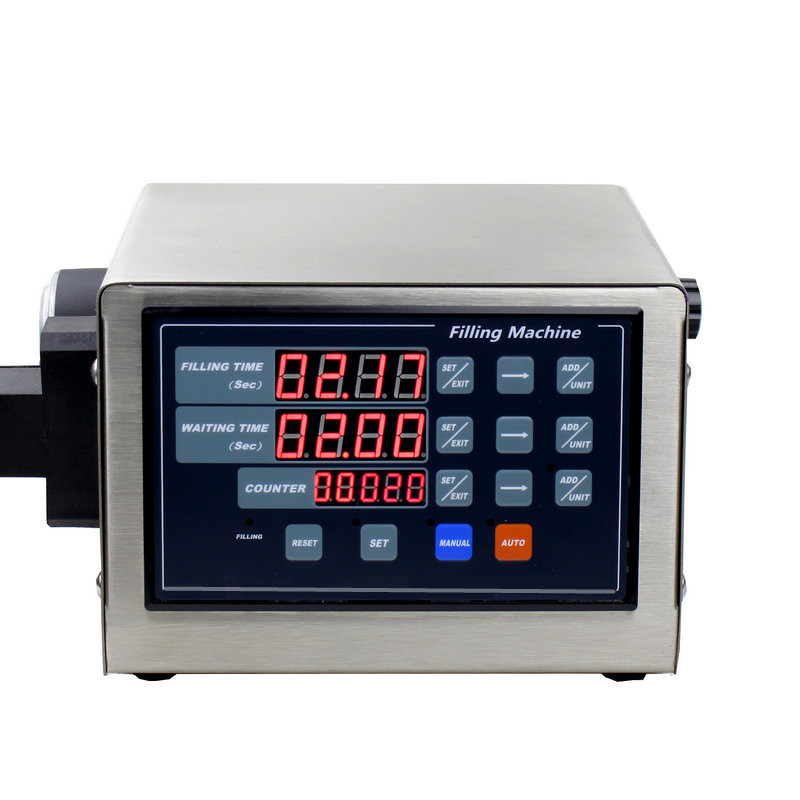

Display |
LED screen display the running data |
|
Filling time preset |
0.01s-999.9s |
|
Interval time preset |
0.01s-999.9s |
|
Filling times |
Maximum 59999 times |
|
Filling time preset |
Accumulate filling times, preset the filling time for choice |
|
Operation mode |
Membrane keypad operate, convenient, quick and reliable ;Import potentiometer knob to adjust the flow |
|
Power-down memory function |
After power on, running as before |
|
Foot switch control |
Foot switch control more convenient |
|
Filling stand |
Both height and length of the Stand are adjustable |
|
Filling nozzle |
304 stainless steel nozzle |
|
Power consumption |
<40W |
|
Power supply |
Wide voltage AC90-260V，50Hz/60Hz |
|
Operation conditions |
Temperature 0 to 40 °C, Relative humidity < 80% |
|
Dimensions |
250mmX180mm×140mm (doesn’t including the filling stand) |
|
Weight |
3.5KG |
|
IP rating |
IP31 |
[Selection guide]
|
Filling volume target（ml） |
Filling time（Sec） |
Actual filling volume（ml） |
Actual filling volume（ml） |
Actual filling volume（ml） |
Actual filling volume（ml） |
Actual filling volume（ml） |
|
5ml |
0.7 |
4.99 |
4.90 |
4.96 |
4.90 |
4.90 |
|
10ml |
1.4 |
10.16 |
10.01 |
10.04 |
10.33 |
9.99 |
|
20ml |
2.87 |
19.99 |
19.86 |
19.93 |
20.11 |
19.86 |
|
50ml |
7.10 |
50.05 |
50.34 |
50.13 |
50.27 |
50.06 |
|
100ml |
15 |
99.86 |
99.68 |
99.56 |
100.15 |
99.90 |
|
1 Above data are actual testing result of 5 times, at highest filling speed 2 Test media is water, the data is influenced by testing media 3 Flow volume decrease when media viscosity increases, or filling time increases |
||||||

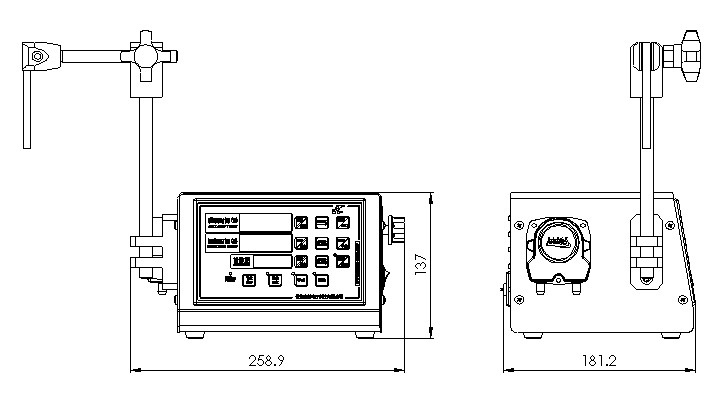

[ Dimensions]
