[ Model ]

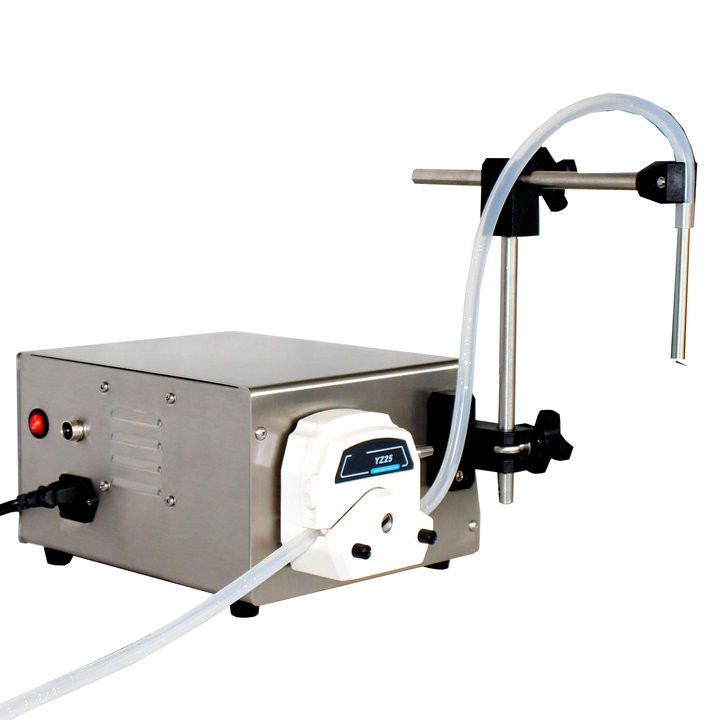

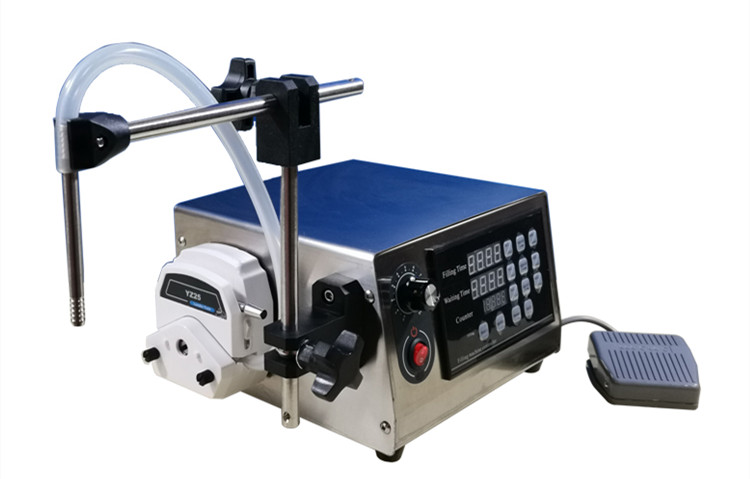

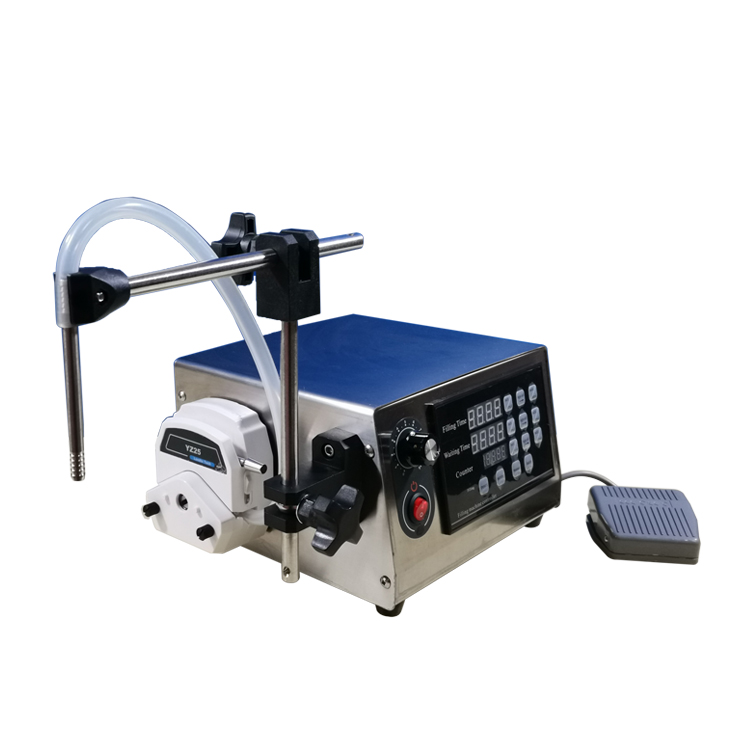

DC1-1B Peristaltic Pump filling machine
[ Introduction ]
Flow range: 0-1850ml/min
Filling range: 0.1-30000mL
AdIPL-OPT-machine.html target='_blank'>OPT LANDTO-LED-DISPENSOR-1 intelligent operation technology, imported chip STM32
Control，With timing quantitative filling,high precision, Flow accuracy±1%
Peristaltic pump filling, 57 stepper motor drive, 128 Times segmentation, low vibration, high
Precision; liquid only touch the tube, don't touch pump body, to avoid secondary pollution.
To Fill beverage, wine, petroleum, chemical, oil, pharmaceutical, pesticide and other viscosity or
impurity liquid.
To fill nutrient medium, and other medical reagent
Imported potentiometer knob to adjust the flow
Manual, auto, preset 3 filling modes for choice
Support running time preset, interval time preset, filling time memory and preset

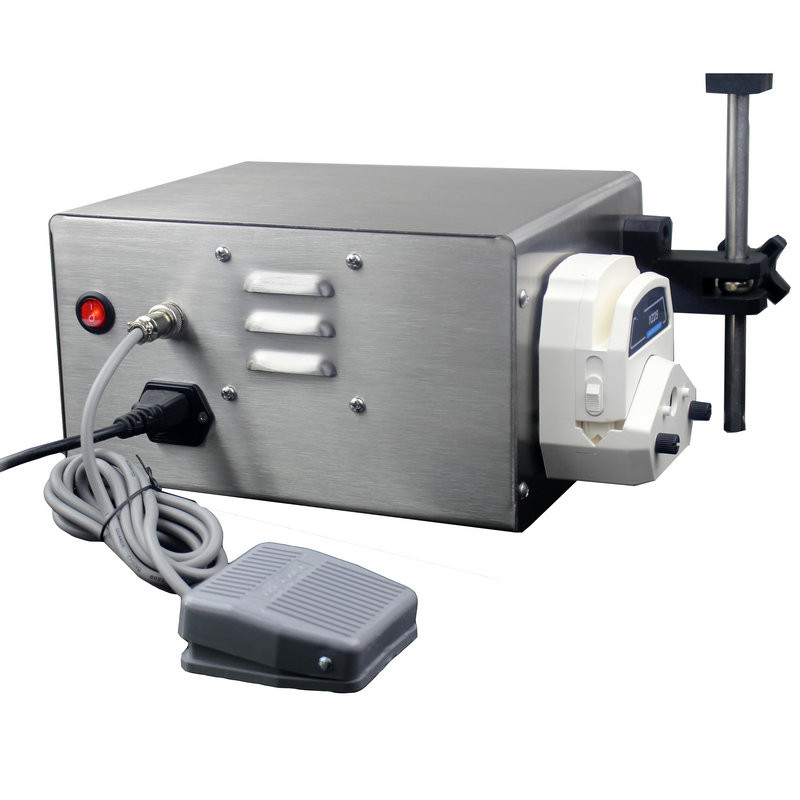

Foot switch control
304 stainless steel filling nozzle
Excellent industrial design, 304 stainless steel shell
Widely power range, AC 90-260V, 50Hz/60Hz
[ Technical parameters ]
|
Model |
DC1-1B Peristaltic Pump filling machine |
|
Filling pump |
S600-YZ25 peristaltic pump( S600-YZ15 peristaltic pump for choice） |
|
Peristaltic pump tube |
Standard 24# tube |
|
CPU |
ARM Cortex-0 Core,STM32 Chip |
|
Motor drive chip |
THB7128 Sanyo driver chip |
|
Filling range |
0.1-30000mL |
|
The best filling volume |
2-800mL |
|
Flow range |
0-2400mL/min (Maximum 2400mL/min for the S600-YZ15 peristaltic pump) |
|
Flow adjust |
potentiometer knob to adjust the flow |
|
Filling nozzle |

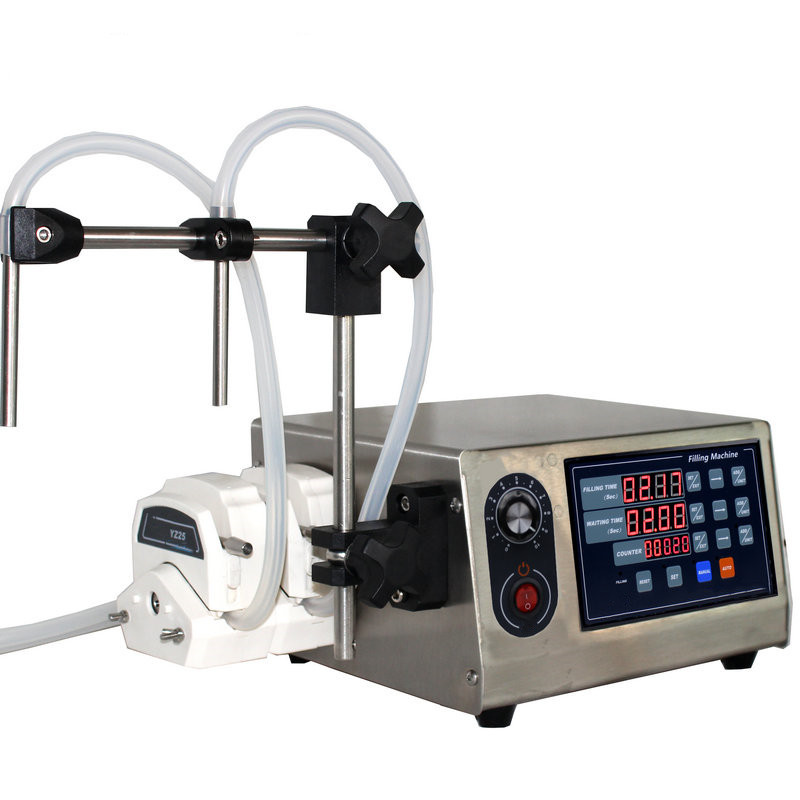

Single(Double for choice) |
|
Filling mode |
Manual,auto, preset three filling modes for choice |
|
Display function |
LED screen display the running data |
|
Filling time preset |
0.01s-999.9s |
|
Interval time preset |
0.01s-999.9s |
|
Filling times |
Maximum 59999 times |
|
Filling time preset |
Accumulate filling times, preset the filling time for choice |
|
Operation mode |
Membrane keypad operate, convenient, quick and reliable ;Import potentiometer knob to adjust the flow |
|
Power-down memory function |
After power on, running as before |
|
Foot switch control |
Foot switch control more convenient |
|
Filling stand |
Both height and length of the Stand are adjustable |
|
Filling nozzle |
304 stainless steel, inner diameter 6mm/3mm/4mm for choice |
|
Power consumption |
<60W |
|
Power supply |
Wide voltage AC90-260V，50Hz/60Hz |
|
Operation conditions |
Temperature 0-40 °C, Relative humidity < 80% |
|
Dimensions |
355mm×250mm×165mm（doesn’t including the filling stand） |
|
Weight |
4.2KG |
|
IP rating |
IP31 |
[ Selection guide ]
|
Filling volume target（ml） |
Filling time（Sec） |
Actual filling volume（ml） |
Actual filling volume（ml） |
Actual filling volume（ml） |
Actual filling volume（ml） |
Actual filling volume（ml） |
|
50ml |
1.85 |
50.27 |
50.25 |
49.44 |
49.56 |
49.86 |
|
100ml |
3.78 |
99.99 |
99.94 |
100.11 |
100.17 |
100.01 |
|
200ml |
7.50 |
200.33 |
200.25 |
200.19 |
199.91 |
199.78 |
|
500ml |
19.28 |
500.73 |
500.71 |
500.55 |
500.64 |
500.56 |
|
Remarks: 1. Above data are actual testing result of 5 times, at highest filling speed 2. Test media is water, the data is influenced by testing media |
||||||
|
Filling volume target（ml） |
Filling time（Sec） |
Actual filling volume（ml） |
Actual filling volume（ml） |
Actual filling volume（ml） |
Actual filling volume（ml） |
Actual filling volume（ml） |
|
30ml |
2.5 |
30.33 |
30.25 |
29.86 |
30.5 |
30.45 |
|
60ml |
5.0 |
60.28 |
60.35 |
60.56 |
60.17 |
60.66 |
|
100ml |
8.3 |
100.38 |
100.25 |
100.56 |
99.91 |
99.70 |
|
200ml |
16.6 |
200.73 |
200.51 |
200.38 |
200.54 |
200.28 |
|
Remarks: 1. Above data are actual testing result of 5 times, at highest filling speed 2. Test media is water, the data is influenced by testing media 3. Flow volume decrease when media viscosity increases, or filling time increases |
||||||

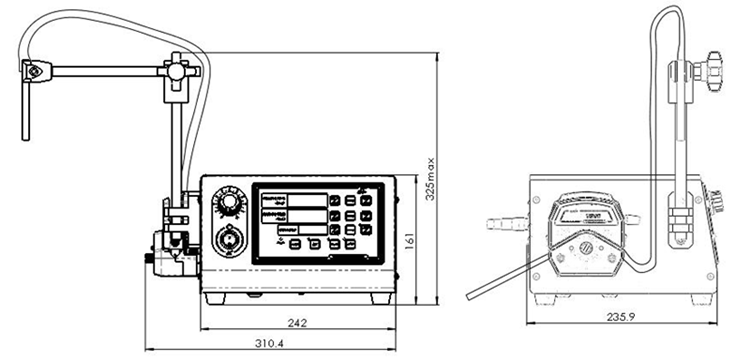

[ Dimensions]
